CNC Machining China Factory

The review that flags a corner radius or a thin wall before quoting becomes the setup plan that runs through control plans, in-process checks, and CMM verification in production. The review and the process plan are the same document, so the part you approved is the part the floor machines.

The hand-off is the part most factories get wrong, and it is the part this floor keeps in one document. When the review flags a corner radius, that same note travels to the programmer, who writes the tool path around it, and to the inspector, who knows the radius is a deliberate feature rather than a defect to flag. Nothing is re-typed, re-interpreted, or dropped between quotation and production, because there is no step between them where a comment could get lost. The review does not end when the quote is accepted; it becomes the production record.

How does the factory verify what it machines?

• Hexagon GLOBAL S CMMs (2) for dimensional verification, plus vision measuring machines and a gear measuring center.
• KEYENCE VK-X3000 laser microscope and SURFCOM 1800D for surface finish and profile.
• XRF (iCHEQ) spectrometer for incoming material composition checks against the mill certificate.
• HVS-1000A micro-Vickers hardness tester, Fischer coating thickness gauge, salt spray and tensile testers.
• SPC: control charts on key characteristics, with Ppk ≥ 1.67 at the initial study on critical characteristics and Cpk ≥ 1.33 in production on general characteristics.

The instrument list reads like a list of assets, but it is really a chain of evidence that covers every claim the factory makes. The CMM backs the tolerance claim, the XRF backs the material claim, the micro-Vickers backs the hardness claim, and the salt spray and tensile testers back the finish and property claims. A claim with no instrument behind it is a slogan; this list is the set of machines that turns each promise into a measurement, and it is why the DFM review can state consequences instead of opinions.

Which certifications does the factory hold?

Standard	Certificate number	Scope
ISO 9001:2015	116024/A/0001/UK/En	Machining of metal parts
IATF 16949:2016	131941/A/0001/SM/En	Manufacture of CNC metal machining parts (excludes product design, Clause 8.3)
ISO 14001:2015	116024/B/0001/UK/En	Environmental management related to machining of metal parts

The three certificates answer three different buyer questions, and reading them together tells you what kind of shop you are dealing with. ISO 9001:2015 is the quality-management backbone: it says processes are defined, controlled and audited. IATF 16949:2016 is the automotive-specific layer that adds the discipline of process capability and defect prevention, and its scope note, which excludes product design under Clause 8.3, is the honest part of the certificate, because it tells you this is a build-to-print operation. ISO 14001:2015 covers the environmental side, which matters when your own compliance depends on your supply chain behaving. A shop holding all three, with verifiable numbers, has answered more than a brochure ever could.

Can I visit the factory?

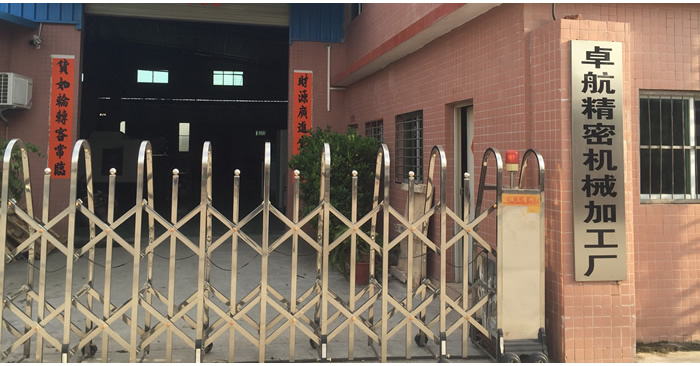

Yes. We are at No. 8, Shuibian Songyuan Road, Hengli Town, Dongguan, Guangdong, China 523470. Arrange a visit through [email protected] and see the DFM review become the process plan.

What to look at, area by area, on a plant walk

A useful factory visit follows the part, not the marketing route. At No. 8, Shuibian Songyuan Road, Hengli Town, Dongguan, this is the order to walk and what to check at each stop.

Area	What to check
Goods-in and material store	XRF spectrometer in use against mill certificates, and whether lots are segregated and labelled before release
Milling cells	Machine tags matching the list you were sent, fixtures in place, and how many machines in the group could take your part
Turning and sliding-head area	Bar handling, and whether small-diameter work runs on machines built for it rather than a chuck lathe
Grinding	Whether ±0.002 mm work has dedicated machines and a stable place to sit, rather than sharing a bench
Heat treatment	The 500 °C in-house range, and how work above it is handed to a qualified partner
Inspection room	Two Hexagon GLOBAL S CMMs, KEYENCE VK-X3000, SURFCOM 1800D, micro-Vickers, Fischer coating gauge, salt spray and tensile testers, inside 20+ instruments
Shipping	How finished and coated surfaces are protected, and whether documents carry the legal entity name

Two hours walked in that order tells you more than a day of meetings, because each stop either has evidence in front of it or does not.

How capacity is organised so a batch keeps moving

Capacity is only useful if it is reachable. Machines are grouped by class rather than scattered, so a job that needs a second 3-axis machine finds one in the same cell with the same fixture standard. Inspection sits with production rather than in a separate building, which is why a first part can be measured and a program corrected inside the same shift. Of 100+ staff, more than 80% are skilled technicians and around 60% have five to ten years of tenure, so a running batch has cover when a shift changes.

That structure is what makes the three lead-time tiers, roughly 3, 7 and 30 days, real numbers rather than optimistic ones. The long tier is not slower machining; it is a part with more operations, a heat-treatment step, or a finishing queue in it.

Why design feedback comes from the floor, not from a sales desk

Manufacturability advice is only credible when the person giving it knows which machine will run the job and which fixture already exists. Because programming, fixturing, machining and measurement all sit inside this 6,800 m² plant, a comment on your drawing can be checked against a real machine envelope of 1300 × 700 × 600 mm, a real cutter set, and a real inspection method. The scope limit stays clear: the IATF 16949 certificate excludes product design under Clause 8.3, so the feedback proposes options and states consequences while your engineering team keeps the decision. That is a narrower promise than a design service, and it is the one a build-to-print manufacturer can actually keep.

Which machine brands run on the floor, and why does it matter for DFM?

A machine's brand is not a badge; it is a statement about rigidity, spindle repeatability and thermal stability, which are the three physical properties a tolerance claim stands on. The floor runs Mazak and Brother machining centers, TSUGAMI and Sodick machines in the precision lines, and Citizen or Star machines for slender turned work — brand names you can verify against the machine tags on a visit.

Machine role	Brands on the floor	What it contributes to DFM
Machining centers	Mazak / Brother	Rigid platforms that hold ±0.003 mm (milling) / ±0.002 mm (turning) across long runs without drifting
Precision and sliding-head turning	TSUGAMI / Sodick / Citizen / Star	The small-diameter, slender work that a chuck lathe would deflect on
Grinding	Dedicated surface, centerless and cylindrical machines	The ±0.002 mm finish that cutting tools cannot reach

For DFM the point is narrower than the brand list. A review comment about whether a feature can be held is only believable if the machine that would hold it actually exists on the floor with a known envelope and a known rigidity. Naming the brands — and being willing to show the tags — is what separates a real capability claim from a recycled brochure, and it is exactly the kind of evidence a plant visit is designed to check.

How does the team's tenure feed the DFM review?

DFM judgement is accumulated, not read off a chart. Of 100+ staff, more than 80% are skilled technicians and around 60% have five to ten years of tenure, which means the person reviewing your drawing has almost certainly seen your failure mode before — the thin wall that deflected, the deep pocket that ate tooling, the tolerance that could have been looser. That experience is what turns a review from a checklist into a judgement, because an experienced machinist does not just flag a problem; they know which fix is the cheapest one that keeps the function.

Tenure also feeds the continuity that a batch depends on. A running job with shift cover from people who know the process is less likely to lose a setup nuance between the day shift and the night shift. The DFM comment written at quoting is read by the same kind of experienced hand at production, so the note survives contact with the floor instead of being re-interpreted by a rotating cast of operators.

What this shop actually runs

If you ask for capability evidence, you deserve a specific answer. This facility operates 100+ CNC machines across 6,800 m2 in Dongguan, China, staffed by 100+ people. The machines, listed by category:

• 5-axis machining centres (10+) - Mazak VARIAXIS I-600 (510/910/510 mm travel, 12,000 rpm, 22 kW, 71.6 N·m, 30-tool BT40) and Mazak INTEGREX I-250H S (B-axis 0.0001°, 24 kW, 124 N·m, 38-tool HSK-A63). Run on compound-angle parts, single-setup multi-face prismatic work, and aerospace fittings where datum transfer loss is unacceptable.
• 3-axis / 4-axis machining centres (50+) - Brother SPEEDIO S500Z2N / S700Z2N (10,000 rpm, 14/21-tool ATC, 0.7 s tool-to-tool, Z-axis 2.2 G) and Mazak VCE-430A L / VCE-570C L (10,000 rpm, 118 N·m, 24-tool ATC). Run on prismatic parts, plates, brackets, housings.
• Swiss-type turning centres (10+) - Citizen Cincom A20-3F7 (Φ20 mm, 10,000 rpm), TSUGAMI B0206-III / B0205-III (Φ20 mm, 0.1 µm), STAR SR-32JII / SR-32J Type N (Φ32 mm, 8,000 rpm). Run on long, slender rotational parts at ±0.002 mm.
• CNC turning centres (20+) - HEADMAN T70M/1250 (720 mm swing, 117 mm bore, 3,000 rpm, BMT75 12-station turret). Run on shafts, bushings, flanges up to ±0.002 mm.
• Wire EDM (5+) - Sodick AQ535L (550/350/300 mm travel, ±20° taper, 800 kg workpiece). Run on hardened tool steel, internal splines, sharp internal corners that milling cannot reach.
• Inspection: Hexagon CMM + 20+ gauges - Hexagon CMM for coordinate measurement, plus vision system, profilometer, hardness tester, coating thickness gauge, XRF for material verification. The 10:1 rule (gauge 10x more accurate than the band) is applied to every feature.
• Machine highlights - VARIAXIS I-600: one-setup multi-face 5-axis + MAZA-CHECK auto-calibration; INTEGREX I-250H S: DONE-IN-ONE mill-turn, B-axis 0.0001° + Ai thermal shield; SPEEDIO S500Z2N / S700Z2N: Z-axis 2.2 G + 0.7 s ATC; Swiss-type: guide-bush switchable + 0.1 µm resolution.

Tolerance bands: ±0.003 mm milled, ±0.002 mm turned, ±0.002 mm ground or wire-cut. Capability indices: Ppk >= 1.67 at the initial study; Cpk >= 1.33 ongoing in production.

Certifications: ISO 9001:2015 (116024/A/0001/UK/En) · IATF 16949:2016 (131941/A/0001/SM/En, design clause 8.3 excluded) · ISO 14001:2015 (116024/B/0001/UK/En), held by Dongguan Zhuohang Ltd (USCC 91441900MA4UWT6X39, since 2005).

Service area: we supply Austria, Belgium, the Czech Republic, Denmark, France, Germany, Greece, Hungary, Ireland, Italy, the Netherlands, Spain, Sweden and the United Kingdom in Europe; Brazil, Canada, Mexico and the United States in the Americas; China, Israel, Japan, Singapore and Sri Lanka in Asia; Australia and New Zealand in Oceania; and South Africa in Africa, with worldwide delivery from China.

Contact: Felipe Iglesias, [email protected], +86 13126536955.
